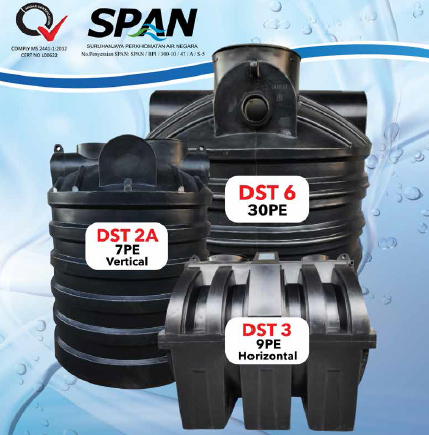

DELUXE Septic Tank SPAN Approved (Tangki Septik) – Vertical DST-2A to DST-6

Product Name: Deluxe Septic Tank Non SPAN (Tangki Septik), Sewarage Treatment System

Deluxe Septic Tanks offer a dependable solution for waste management, combining durable construction with innovative design.

DELUXE PE SEPTIC TANKS SPECIFICATION
MODEL	DST-2A	DST-2	DST-12(NEW)	DST-16(NEW)	DST-4	DST-5	DST-6
TYPE	VERTICAL	VERTICAL	VERTICAL	VERTICAL	VERTICAL	VERTICAL	VERTICAL
PERSON SERVE	7 PE	10 PE	12 PE	16 PE	18 PE	21 PE	30 PE
EFFECTIVE VOLUME, I	>2,200 LITERS	>3,200 LITERS	>3,700 LITERS	>4,900 LITERS	>5,500 LITERS	>6,500 LITERS	>9,600 LITERS
HYDRAULIC RETENTION TIME, h	>24	>24	>24	>24	>24	>24	>24
DIAMETER, mm (A)	1470 mm	1617 mm	1850 mm	1850 mm	2032 mm	2175 mm	2464 mm
HEIGHT, mm	1788 mm	2014 mm	1850 mm	2285 mm	2260 mm	2170 mm	2620 mm
LENGTH, mm	N/A	N/A	N/A	N/A	N/A	N/A	N/A
INLET/OUTLET DIAMETER, mm	100 mm	100 mm	100 mm	100 mm	100 mm	100 mm	100 mm

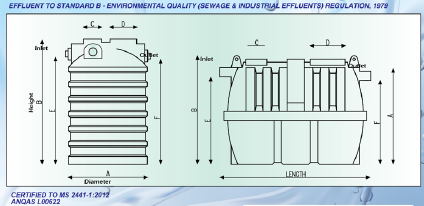

PRODUCT DIMENSION

A	1470 mm	1617 mm	1850 mm	1850 mm	2032 mm	2175 mm	2464 mm
B	1788 mm	2014 mm	1850 mm	2285 mm	2260 mm	2170 mm	2620 mm
C	>200 mm	>200 mm	>200 mm	>200 mm	>200 mm	>200 mm	>200 mm
D	>400 mm	>400 mm	>400 mm	>400 mm	>400 mm	>400 mm	>400 mm
E	1533 mm	1768 mm	1580 mm	2015 mm	1930 mm	1950 mm	2320 mm
F	1455 mm	1687 mm	1500 mm	1935 mm	1845 mm	1870 mm	2240 mm

Features:

Robust Construction: Deluxe Septic Tanks are constructed with durable materials, designed to withstand the test of time and effectively contain and process waste.

Varied Capacities: Available in a range of sizes to suit different household or commercial needs, ensuring efficient waste management for any application.

Innovative Design: Designed with thoughtful features, Deluxe Septic Tanks come equipped with elements such as reinforced lids for durability and easy access for maintenance.

Reliable Waste Processing: These tanks efficiently separate solids from wastewater, allowing for safe and environmentally friendly waste disposal.

Low Maintenance: Deluxe Septic Tanks are designed for minimal maintenance, ensuring a hassle-free waste management system.

Liters	DST-2A VERTICAL(7 PE) >2200 LITERS, DST-2 VERTICAL(10 PE) >3200 LITERS, DST-12 VERTICAL(12 PE) >3700 LITERS, DST-16 VERTICAL(16 PE) >4900 LITERS, DST-4 VERTICAL(18 PE) >5500 LITERS, DST-5 VERTICAL(21 PE) >6500 LITERS, DST-6 VERTICAL(30 PE) >9600 LITERS
